Star Rigging - the grand endeavor...

  Introduction to Star-Rigging



Simple is absolutely best.  The only reason to tinker with the already excellent Micronesian rig is to find a way to shunt the rig single-handedly in larger sizes, breezier conditions, and rougher sea states.  The goal is to tilt the mast under control with backstays and at the same time move the yard to the other end of the boat.

I wanted a way to pair the line that would tilt the mast and the line that would move the yard over but discovered that those two lines moved through differing distances and at different rates.  Eventually I stumbled upon the present arrangement which allows those two lines to travel together, "married" as it were at a central attachment point, a ring, where all the lines meet and are snugged up.

The traveling block up on the mast allows the introduction of more (needed) line into the continuous backstay system and, oddly enough, the height of the block is not that critical.

A tackline moves the yard from one end to the other.  The tackline and the continous backstay work in trandem and accomplish the shunt with the operator working from amidships at the base of the mast, a good secure location.

...

I went for the largest size model I could possibly patch together and I do mean patch together! I've built this almost entirely with found material. God is good and at each stage provided whatever material I've needed:The hull is of scrap wood
The mast is a fence post
The sail, post-Katrina blue polytarp
The spars are Mimosa branches
The lines are black poly from work
The sheaves are made of 2 x 4's
And so on...

With this model I intended to "make or break" the concept.

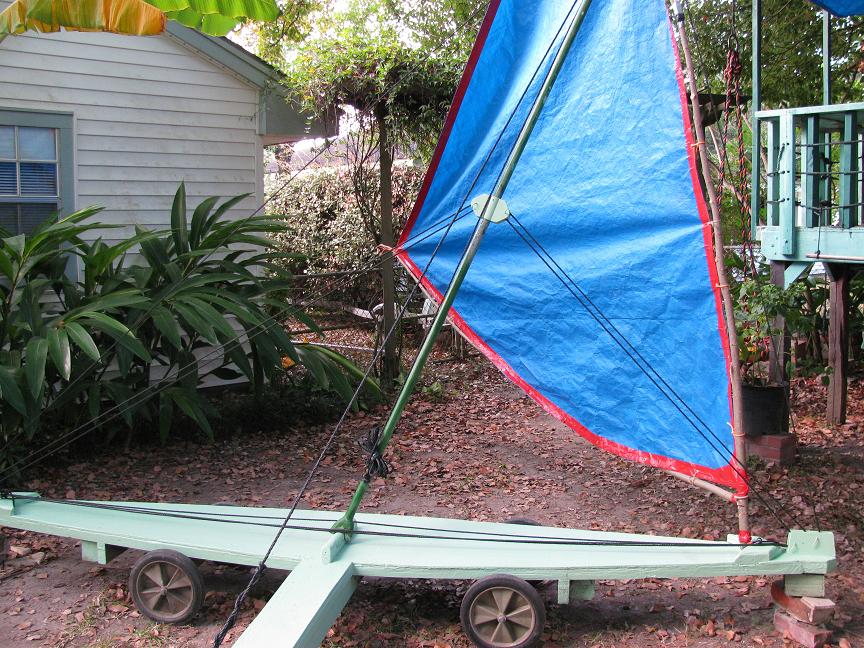

This is the completed 12 foot model. Properly speaking, this is a "mock-up" built to further test a rig innovation. A small prototype was built earlier and performed well enough to justify a further exploration of the concept with a larger model.
